1.5W 0.5~5.0mm Thick Thermal Pad Insulator Insulation Materials Elements Thermal Conductive Pad

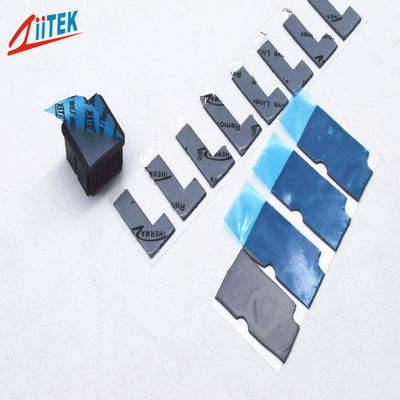

Großes Bild : 1.5W 0.5~5.0mm Thick Thermal Pad Insulator Insulation Materials Elements Thermal Conductive Pad

Produktdetails:

Herkunftsort:	CHINA
Markenname:	ZIITEK
Zertifizierung:	UL and RoHs
Modellnummer:	TIF100-02s

Zahlung und Versand AGB:

Min Bestellmenge:	1000 Prozent
Preis:	Verhandlungsfähig
Verpackung Informationen:	1000 Prozent/Tasche
Lieferzeit:	3-5 Arbeitstage
Versorgungsmaterial-Fähigkeit:	100000 Prozent/Tag

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	1,5W 0,5 ~ 5,0 mm dicker Wärmeleblattisolatorisolationsmaterialien Elemente Wärme leitendes Pad	Schlüsselwörter:	Thermische leitfähige Auflage
Härte:	45 Ufer 00	Dicke:	0.020" ((0.5mm) ~0.200" ((5.0mm)
Wärmeleitfähigkeit:	1,5 W/m-K	Dauereinsatz Temp:	-45 bis 200°C
Farbe:	Grau	Anwendung:	Thermalmodul Grafikkarten

1.5W 0.5~5.0mm Thick Thermal Pad Insulator Insulation Materials Elements Thermal Conductive Pad

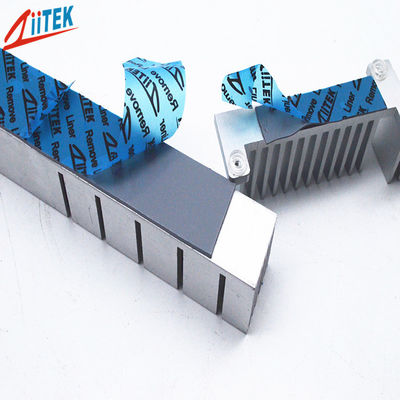

The TIF^®100-02S Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.

Features

> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized

Applications

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware

> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

> Display card
> Mainboard/mother board
> Notebook

Typical Properties of TIF^®100-02S Series
Property	Value	Test method
Color	Gray	******
Construction &Compostion	Ceramic filled silicone elastomer	******
Thickness range	0.020"(0.5mm)~0.200"(0.50mm)	ASTM D374
Specific Gravity	2.3g/cc	ASTM D297
Hardness	45 Shore 00	ASTM 2240
Continuos Use Temp	-45 to 200℃	******
Dielectric Breakdown Voltage	> 5500 VAC	ASTM D149
Dielectric Constant	4.5 MHz	ASTM D150
Volume Resistivity	1.0 X10¹² Ohm-meter	ASTM D257
Flame rating	94 V0	UL E331100
Outgassing(TML)	0.35%	ASTM E595
Thermal conductivity	1.5 W/m-K	ASTM D5470

Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
