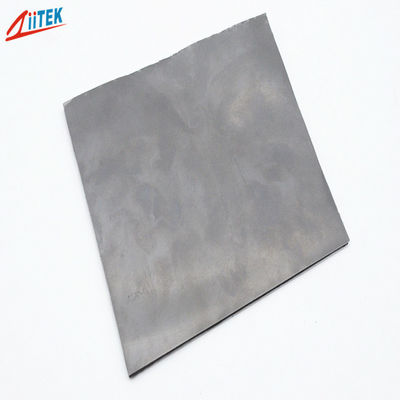

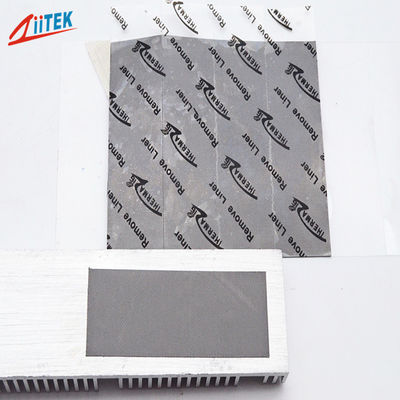

RoHS Silicone Thermal Conductive Pad GPU Thermal Pads Thermal Gap Pad For Heat Sink 5.0W/MK

Großes Bild : RoHS Silicone Thermal Conductive Pad GPU Thermal Pads Thermal Gap Pad For Heat Sink 5.0W/MK

Produktdetails:

Herkunftsort:	China
Markenname:	ZIITEK
Zertifizierung:	UL and RoHs
Modellnummer:	Tif800es

Zahlung und Versand AGB:

Min Bestellmenge:	1000 Prozent
Preis:	Verhandlungsfähig
Verpackung Informationen:	1000 Prozent/Tasche
Lieferzeit:	3-5work Tage
Versorgungsmaterial-Fähigkeit:	10000/Tag

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	Rohs Silikon Wärmeleitkissen GPU Wärmekissen Wärmespaltkissen für Kühlkörper 5.0w/mk	Dicke:	0,02 ~ 0,2 Zoll （0,50 ~ 5,0 mm））
Anwendung:	Wärmedissipationsstruktur für Kühler	Breakdown -Spannung:	≥5500 VAC
Dielektrizitätskonstante:	5,5 MHZ	Bau u. Compostion:	Mit Keramik gefüllte Silikonelastomer
Schlüsselwörter:	Wärmekissen	Farbe:	Grau
Härte:	12 Ufer 00

RoHS Silicone Thermal Conductive Pad GPU Thermal Pads Thermal Gap Pad For Heat Sink 5.0W/MK

The TIF^®800ES is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features:

> Good thermal conductive:5.0W/mK

> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications

> High compliance adapts to various pressure application environments
> Available in different thickness options

Applications:

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

> Telecommunication equipment
> Automotive electronics
> Battery packs for electric vehicles
> LED TV and lamps

Typical Properties of TIF^®800ES Series
Color	Gray	Visual
Construction &Compostion	Ceramic filled silicone elastomer	******
Thickness	0.020"(0.5mm)~0.200"(5.0MM)	ASTM D374
Specific Gravity	3.3g/cc	ASTM D792
Hardness	12 Shore 00	ASTM 2240
Operating Temp	-40 to 200℃	******
Dielectric Breakdown Voltage(V/mm)	≥5500 VAC	ASTM D149
Dielectric Constant @1MHz	5.5 MHz	ASTM D150
Volume Resistivity	≥1.0x10¹² Ohm-meter	ASTM D257
Flame rating	94 -V0	UL E331100
Thermal conductivity	5.0 W/m-K	ASTM D5470

Products specificatrion

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm) with increments of 0.01 inch (0.25 mm).

Product Sizes: 8" x 16"(203mm x406mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided / Double-sided adhesive).
The TIF series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
