2.0 W/mK Wärmeleitfähigkeit Silikonfett Weiße Wärmepaste

Großes Bild : 2.0 W/mK Wärmeleitfähigkeit Silikonfett Weiße Wärmepaste

Produktdetails:

Place of Origin:	China
Markenname:	Ziitek
Zertifizierung:	RoHs
Model Number:	TIG780-20

Zahlung und Versand AGB:

Minimum Order Quantity:	1KG Thermal Silicone Grease
Packaging Details:	1KG/CAN
Delivery Time:	3-5 work days
Supply Ability:	100KG/Days of thermal Silicone Grease

Kontakt

Ausführliche Produkt-Beschreibung

Product Name:	Thermal Conductivity Silicone Grease White Thermal Paste	Color:	Gray
Construction & Compostion:	Metal oxide filled silicone oil	Thermal Conductivity:	2.0 W/mK
Keywords:	Thermal Silicone Grease	Density:	3.0 g/cm³
Hervorheben:	Weiße Wärmepaste , Wärmeleitfähigkeit Silikonfett , Silikonfettthermische Paste

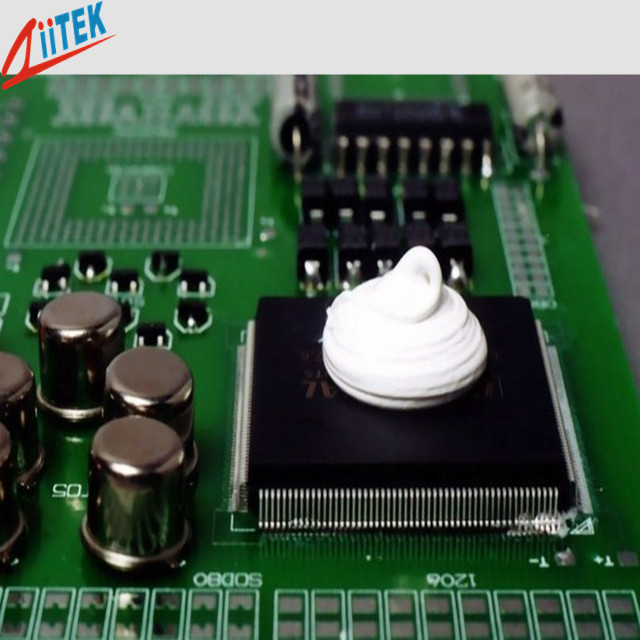

Thermal Conductivity Silicone Grease White Thermal Paste

The TIG™780-20 is environmentally safe silicone-based thermal grease designed to solve overheating and reliability issues.

TIG™780-20 is a heat conducting product in the shape of paste.They serve to moisten the contact surface sufficiently so as to form an
interface of extremely low thermal impedance.Consequently, the heat dissipation efficiency is far superior to that offered by others.

TIG780-20-Series-Datasheet (1).pdf

Features

> Good thermal conductivity.
> Non-toxic and environmentally safe
> Excellent long term stability

> Thoroughly wets out contact surfaces to create.

> Low thermal impedance.

Applications

> Semiconductor cases and heat sinks
> Power resistors and chassis, thermostats and mating surfaces, and thermoelectric cooling devices
> CPU's and GPU's

> LED Lighting
> Automatic dispensing and screen-printing

Typical Properties of TIG™780-20 Series
ProductName	TIG™780-20	Test Method
Color	White	Visual
Materials	Metal oxide filled silicone oil	Ziitek Test Method
Specific Gravity	3.0g/cm³	ASTM D297
Thermal Conductivity(W/mK)	2.0W/mK	ASTM D5470
Thermal lmpedance(℃-in²/W )@ 10 psi	0.090	ASTM D5470
Thermal lmpedance(℃-in²/W )@ 50 psi	0.055	ASTM D5470
Viscosity(( mPa·s )	400	GB/T 10247

Package :
Packing specification 0.5kg,1kg, 2kg; For other specifications, please contact us.

Storage:
Store from 18° C to 25°C with a maximum humidity of 70%.Do not store in freezer or refrigerator below0°C.Safe disposal method does not require special protection.The storage condition is low temperature and dry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
