High-Temperature Resistant Black Silicone Foaming Material For Communication Equipment
Z-Foam®800-01EC Series foamed silicone is a foam material formed by the foaming of polysiloxane, retaining the excellent properties of silicone polymers, such as resistance to high and low temperatures, ultraviolet light, ozone, weatherability, insulation, and environmental friendliness, while also possessing the characteristics of foam materials, including low density, excellent sound absorption, and shock resistance. Its outstanding compressive deformation resistance,creep resistance,flame retardancy,and mechanical fatigue resistance make it an ideal material for various high-performance applications such as sealing,vibration damping,cushioning, sound insulation, protection, insulation, fireproofing, and noise absorption.
Features
>Resistant to mechanical fatigue
>Resistant to ozone and ultraviolet rays
>High oxygen index, low smoke,low toxicity
>Excellent performance under extreme temperatures
>Excellent resistance to compression set and creep
Application
>Communication Equipment
>Smart Devices
>Cables and Optical Fibers
>Airplanes, High-Speed Trains,Automobiles
>Telecommunication and Electrical Cabinets
| Typical Properties of Z-Foam®800-01EC Series |
| Properties |
Value |
Test method |
| Color |
Black |
Visual |
| Structure & Component |
Silicone rubber |
****** |
| Density (g/cm3) |
0.27 |
ASTM D1056 |
| Compression Set @100℃(%)) |
＜3.0 |
ASTM D1056 |
| Tensile Strength (MPa) |
≥0.3 |
ASTM D412 |
| Elongation At Break (%) |
≥90 |
ASTM D570 |
| Water Absorption (%) |
≤5.0 |
ASTM D412 |
| Breakdown Voltage (kV/mm) |
≥2.0 |
ASTM D149 |
| Volume Resistivity (Ω·cm) |
≥1.0 x 1015 |
ASTM D257 |
| Temperature Range (℃)) |
-55~200 |
****** |
| Flame Rating |
V-0 |
UL94 (E331100) |
Standard Sheet Size:23" x 60"(584mm x 1524mm)

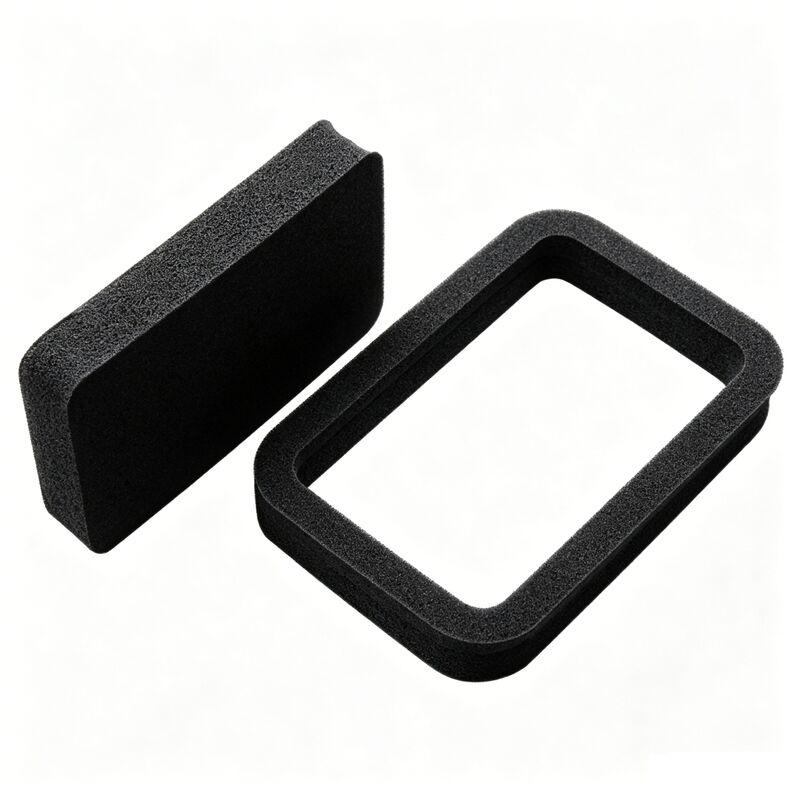

Z-Foam® Series can be die-cut into different shapes provided.
For More different thickness,please contact us.
