Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling

China Dongguan Ziitek Electronic Materials & Technology Ltd. zertifizierungen
China Dongguan Ziitek Electronic Materials & Technology Ltd. zertifizierungen
Die thermische leitfähige Auflage ist, bearbeitend schauend und sehr gutes. Wir haben keinen Bedarf an anderer thermischer leitfähiger Auflage jetzt!

—— Peter Goolsby

Ich hatte mit Ziitek für 2 Jahre zusammengearbeitet, lieferten sie thermische leitfähige Materialien der hohen Qualität, und Lieferung in der Zeit, empfehlen ihre Phasenänderungsmaterialien

—— Antonello Sau

Gute Qualität, guter Service. Ihr Team geben uns Hilfe und das Lösen immer, Hoffnung, die wir guter Partner ständig sind!

—— Chris Rogers

Ich bin online Chat Jetzt

Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling

Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling

Großes Bild :  Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling

Produktdetails:
Herkunftsort: CHINA
Markenname: ZIITEK
Zertifizierung: UL and RoHs
Modellnummer: TIF100-07U-Serie
Zahlung und Versand AGB:
Min Bestellmenge: 1000 Prozent
Preis: Verhandlungsfähig
Verpackung Informationen: 1000 Prozent/Tasche
Lieferzeit: 3-5 Arbeitstage
Versorgungsmaterial-Fähigkeit: 100000 Prozent/Tag
Ausführliche Produkt-Beschreibung
Produktname: Photovoltaik-Thermopad in Sondergröße, 1–15 W, 0,5 mm ~ 5,0 mm, leitfähige Silikon-Themals-Pads für Schlüsselwörter: Thermalpad
Wärmeleitfähigkeit: 1,5 W/m-K Farbe: Grün
Dicke: 0.020" ((0.5mm) ~0.200" ((5.0mm) Härte: 27 Ufer 00
Dauereinsatz Temp: -45 bis 200°C Probe: Probe frei

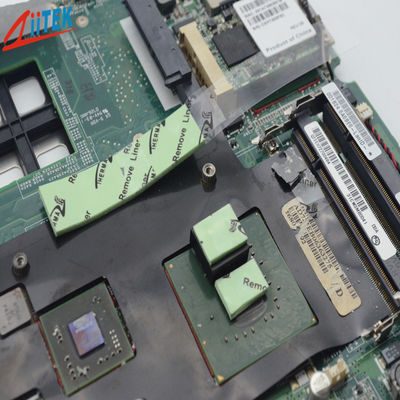

Anwendung: Photovoltaik-LED-Laptop-GPU-SSD-Kühlung

Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling



The TIF®100-07U Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> LED Power Supply
> LED Controller
> LED Ceilinglamp
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator



Typical Properties of TIF®100-07U Series
Property Value Test method
Color Green ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(0.50mm) ASTM D374
Specific Gravity 2.2g/cc ASTM D297
Hardness 27 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 3.5 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470



Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)

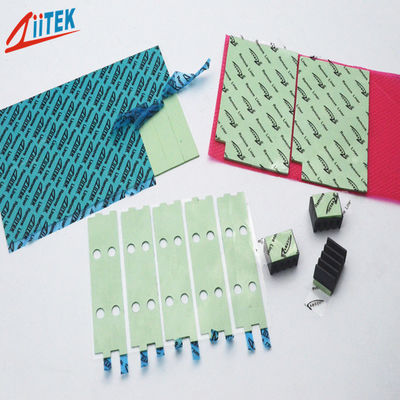

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.



Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Company profile



With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL



Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.
